QuantaModule Open Source 5-Watt Far UV Excimer Module DC 24V Far-UVC Light Kit with 222nm Bandpass Flitter and Housing
$215.00
First UVC B-Series 222nm Far Uvc Excimer Lamp B1-5W Module Far UVC Lamp For Integration With Your Own Far-UV Devices.
These days, open-source hardware is the rage among venture capitalists, technologists, and hackers. The idea for our three QuantaModule kits is for anyone (OEMs) to adapt and integrate Far-UV into whatever you like.
The minimum quantity factory direct price is $215 each
Sample Fee for under 10 units adds $100.00 to the order total!
Shipping cost is determined by location and method of delivery service requested.
>10 units = $215 for each unit
>50 units = $193 for each unit
+100 units = $151 for each unit
Contact us for quoting 1000 units or more
Sample Unit Price $215 each
Products using the FarUV Lighting Open Source DC 24V 5-Watt Far-UVC Light with 222nm Bandpass Flitter and Housing Module
QuantaLamp: Replacement 5W Far-UV Bulb
- Input Voltage(V):DC 24V
- Lamp Luminous Efficiency(lm/w):2000
- Warranty(Year):1-Year
- Support Dimmer:No
- Lighting solutions service:222nm Far Uvc Disinfection
- Lifespan (hours):4000
- Voltage:220V
- Application:Home, Hotel, Office, Retail spaces,, Occupied areas, General areas, Restaurants, Hospital,Commercial locations, Airport, School
- Power Supply:DC
- Portable:No
- Light Source:Quartz Tube
- wavelength(nm):222
- UV Optiical Power(μW/cm2):2000
- Appplication Area(㎡):30
- Switch Mode:Manual Button
- Rated Power: 5W
- UV Wavelength:FAR-UVC 222nm
- Input Voltage:DC24V
- Safety Requirement:Mercury Free
- Material:Quartz Glass Filter, Aluminum Alloy, Sandblasting Oxidation (Silver)
- Operating Temperature Range:-20℃ to +50℃
- Warranty:12 months
- Life Span:4000+
- Certification:CE/FCC/RoHS
- Beam Angle:60degree
- UV lamp:222nm

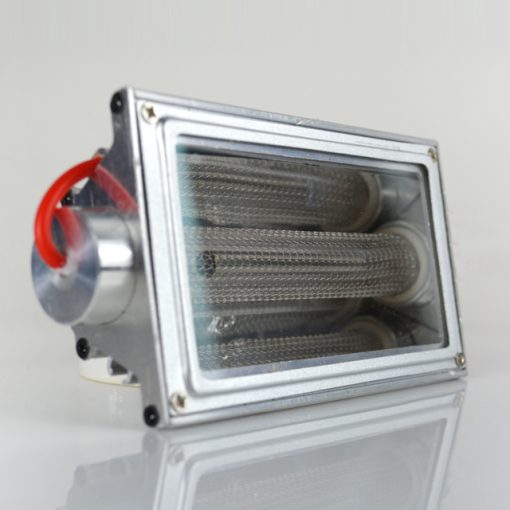

An innovation of FAR-UVC, the Faruv.lighting FIRST UVC 222nm B-Series Open Source Module kit is a combination of Excimer lamp, optical band-pass filter with aluminum alloy housing where it was ideally designed and offered so anyone can then adapt and integrate Far-Uv with your own devices.
- ● Safety Filter technology (Narrowband 222nm Emission)
- ● ZERO Mercury – Environment Friendly
- ● Peak wavelength 222nm
- ● Minimal Ozone Emission
- ● 99% of viruses, bacteria, mold, and spores.
- ● Higher UV output
- ● Mass production Capacity
- ● Model – B1-5W / B2-15W / B3-20W
The idea is that FIRSTUVC offers a kit of B-Series module “B1-5W/ B2-15W / B3-20W” which anyone can then adapt and integrate whatever they like.
The featured B-Series module contains highly efficient 222nm Excimer lamps and a safety filter that eliminates dangerous longer wavelengths of more than 230nm.
The B-Series module feature is a powerful solution for occupied and unoccupied areas.
B-Series module equipped with an expected lifespan of 3,000-10,000 hours, the Excimer light emits a flood beam pattern and is replaceable.
The housing on this unit is constructed of aluminum alloy for durability.
B-Series module being safe for use in occupied areas, instant-on power, mercury-free, higher UV output, and low heat output make Far-UVC Excimer lamps the preferred choice for UV sanitation and disinfecting applications
