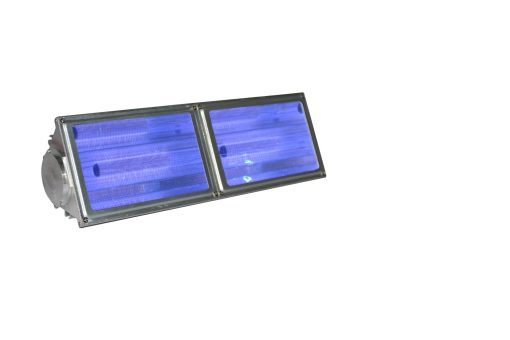

QuantaModule Open Source 40-Watt Far UV Excimer Module DC 24V Far-UVC Light Kit with 222nm Bandpass Flitter and Housing
$378.00
Each 40-Watt Filtered 222nm Far-UVC Lamp modules are hand-assembled and manufactured in an official ISO9001 Excimer Far-UV Light Factory (quality management systems) delivered by the Agency for International Standardization. To provide the highest-quality Far-UV light products globally, a battery of testing that includes but is not limited to: Microbiological Effectiveness Test, IEC62471 (photobiological safety inspection), BACL ( 222m, wavelength test), and CE, FCC, RoHS Certifications.
- ● 40-Watt Safety Filter Technology (Narrowband 222nm Emission)
- ● ZERO Mercury – Environment Friendly
- ● 40-Watt Peak wavelength 222nm
- ● Minimal Ozone Emission
- ● Wide Operating Temperature
- ● 40-Watts Instantaneous On/Off
When you need a 40-Watt Filtered 222nm, Far-UVC lamp module, make sure your Far UVC choice is always QuantaDose for the best Far-UVC lighting to meets your AP-UVGI needs. Our experts are standing by to assist you!
The minimum quantity factory direct price is $378 each
Sample Fee for under 5 units adds $100.00 to the order total!
Shipping cost is determined by location and method of delivery service requested.
>50 units = $340 for each unit
+100 units = $245 for each unit
Contact us for quoting 1000 units or more
222nm Far UVC Excimer Lamp B4-40W Module Far UVC Lamp For Integration With Your Own Far-UV Devices.
These days, open-source hardware is the rage among venture capitalists, technologists, and hackers. The idea for our three QuantaModule kits is for anyone (OEMs) can then adapt and integrate Far-UV into whatever you like.
Products using the FarUV Lighting Open Source DC 24V 20-Watt Far-UVC Light with 222nm Bandpass Flitter and Housing Module
QuantaLamp: Replacement 40W Far-UV Bulb
- Input Voltage(V): DC 24V
- Lamp Luminous Efficiency(lm/w): 5000
- Warranty(Year): 1-Year
- Support Dimmer: No
- Lighting solutions service: 222nm Far UVC Disinfection
- Lifespan (hours): 4000
- Voltage: 220V
- Application: AP-UVGI Occupied areas
- Power Supply: DC
- Portable: No
- Light Source: Quartz Tube
- wavelength(nm): 222
- UV Optiical Power(μW/cm2): 5000
- Application Area(㎡): 30
- Switch Mode: Manual Button
- Rated Power: 40W
- UV Wavelength: FAR-UVC 222nm
- Input Voltage: DC24V
- Safety Requirement: Mercury Free
- Material: Quartz Glass Filter, Aluminum Alloy, Sandblasting Oxidation (Silver)
- Operating Temperature Range: -20℃ to +50℃
- Warranty: 12 months
- Life Span: 4000+
- Certification: CE/FCC/RoHS
- Beam Angle: 60degree
- UV lamp: 222nm
FDA DISCLAIMER – FOOD AND DRUG ADMINISTRATION STATEMENT
The statements made within this website have not been evaluated by the U.S. Food and Drug Administration. These statements and the products of this company are not intended to diagnose, treat, cure or prevent any disease. Additional UVC light regulation requirements may be needed for sale or distribution in Hawaii, Indiana, New Mexico, Wyoming, and the US Territory of Puerto Rico.
CAUTION: Far-UVC sources have not been tested for photosensitive individuals or those exposed to photo-sensitizing agents.
CAUTION: Far-UVC may help to reduce the number of germs and microbes, but it will not eliminate them.
NOTE: Far-UVC is designed to sanitize air and surfaces using far ultraviolet C (Far-UVC). Research has shown Far-UVC light to be as or more effective in inactivating microbes than UVC light. Unlike conventional UVC, Far-UVC does not require the use of UV protective equipment when UVC wavelengths greater than 230nm are filtered from the Far-UVC light source. [1] [2] [3]
NOTE: The actual inactivation rate of microbes on surfaces and air will vary based on the type of microorganisms and the length of exposure time irradiated.
NOTE: QuantaDose issued a press release that offers an easy spreadsheet calculator tool to help Far-UVC light designers determine time allowance with a known power and distance to help figure out the time necessary to be effective and when the maximum levels of safe 222nm exposure levels are reached under current international standards. USA 22 mJ/cm2 EU 30 mJ/cm2
Download it here Excel Doc. (Far-uvc-light-222nm-irradiance-time-distance-power-calculation-tool)
NOTE: Far-UVC is to be used combined with all safety measures and is not intended as a replacement or modification to an existing cleaning and sanitization program.
NOTE: Far-UVC a KrCl emitter has a nominal operational life of >3000 hours. If the visible dim violet glow is no longer detected, the Far-UVC lamp must be replaced. A QuantaDose UVC test card is included for Far-UVC light testing as well.
REFERENCES
[1] Welch, D., Buonanno, M., Grilj, V. et al. Far-UVC light: A new tool to control the spread of airborne-mediated microbial diseases. Sci Rep 8, 2752 (2018). https://doi.org/10.1038/s41598-018-21058-w
[2] Buonanno, M., Ponnaiya, B., Welch, D. et al. Germicidal Efficacy and Mammalian Skin Safety of 222-nm UV Light; Columbia University Medical Center; 2017; https://pubmed.ncbi.nlm.nih.gov/28225654/
[3] Manuela Buonanno, David Welch, Igor Shuryak, David J. Brenner; Far-UVC Light Efficiently and Safely Inactivates Airborne Human Coronaviruses; Columbia University Medical Center; 2020; https://www.researchsquare.com/article/rs-25728/v1
Find the 222nm Far-UVC light that is right for you!
QuantaGuard (6) || QuantaBulbs (8) || QuantaModule (3) || QuantaLEDs (1)
1000W Far-UVC (1) | 150W Far-UVC (1) | 100W Far-UVC (1) | 60W Far-UVC (1)
40W Far-UVC (1) | 20W Far-UVC (3) | 15W Far-UVC (3) | 5W Far-UVC (3) | 2W Far-UVC (1)
The featured B-Series module contains highly efficient 222nm Excimer lamps and a safety filter that eliminates dangerous longer wavelengths of greater than 230nm.
The B-Series module feature is a powerful solution for occupied and unoccupied areas.
B-Series module equipped with an expected lifespan of 3,000-10,000 hours, the Excimer light emits a flood beam pattern and is replaceable.
The housing on this unit is constructed of aluminum alloy for durability.
B-Series module being safe for use in occupied areas, instant-on power, mercury-free, higher UV output, and low heat output make Far-UVC Excimer lamps the preferred choice for UV sanitation and disinfecting applications
